Hybrid Vacuum Safety System M16C for Fantasea housings
Hybrid Vacuum Safety System M16C for Fantasea housings
Hybrid Vacuum Safety System M16C for Fantasea housings

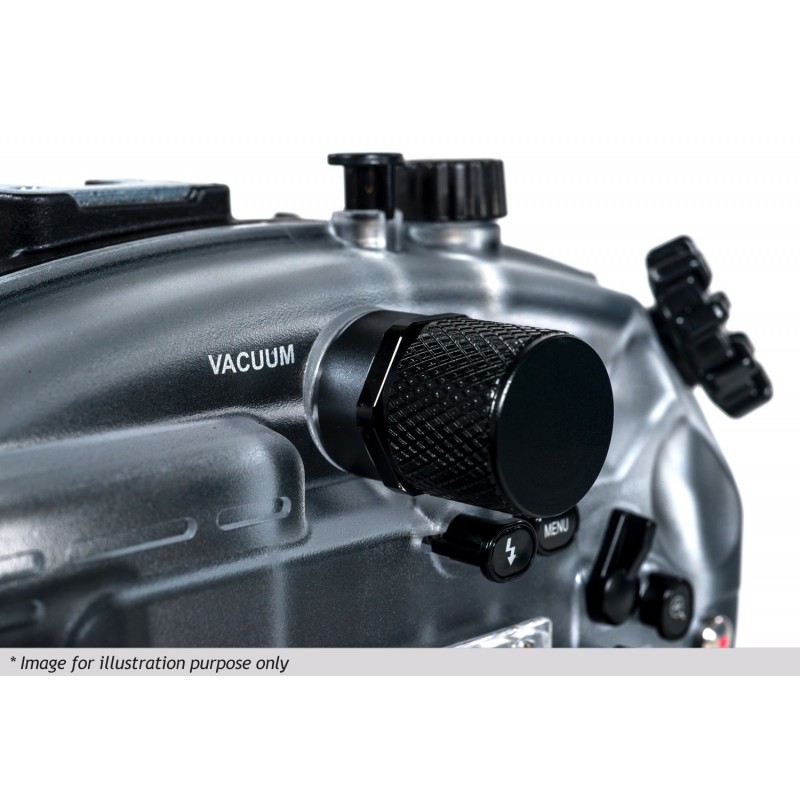

The Hybrid Vacuum Safety System M16C is an optional pre-dive vacuum test and leak detector safety system. The system allows confirming the watertight seal of the Fantasea housing prior to the dive using the vacuum system and monitoring the housing seal during the dive using the moisture detector. /p>
Compatibility
The Hybrid Vacuum Safety System M16C requires self installation. It can be installed and used inside the following housings:
- Fantasea housings equipped with an M16 port*.
- Other brands housings equipped with an M16 port, as long as the following requirements are met:
- - Housing’s M16 port features a thread type that is compatible with the thread type featured on the vacuum valve of the Hybrid Vacuum Safety System M16C.
- - Housing consists of sufficient internal space to accommodate all vacuum safety system components in a manner that does not interfere with housing operation and allows operating the vacuum safety system. Please refer to the Features & Specifications section for components dimensions.
- - Housing features a transparent area through which the LED indicator of the vacuum safety system can be observed and monitored.
Features & Specifications
- Depth rated to 100 meters / 330 feet
- Vacuum valve material: black anodized aluminum alloy
- Moisture sensor material: flexible printed circuit board
- Battery: 3.7V 110mAh Lithium rechargeable battery
- Charging port: 5V micro-USB
- Charging duration: approx. 45 minutes
- Battery life: approx. 4 days
- Alarm: audio + visual (LED)
- Vacuum analysis duration: 4 minutes
- Dimensions:
- Vacuum valve – 24 x 35 mm / 0.94 x 1.38 inch (D x L)
- Main PC board – 28 x 18 x 7 mm / 1.1 x 0.7 x 0.27 inch (L x W x H)
- Signal board – 30 x 14 x 7 mm / 1.18 x 0.55 x 0.27 inch (L x W x H)
- Moisture sensor – can be trimmed if required
- Connection cable – 140 mm / 5.51 inch (long cable) OR 75 mm / 2.95 inch (short cable)
- Weight (including all system components): 30.2 g / 1.06 oz
- Included in package: vacuum valve, vacuum pump, Multi purpose key, double-sided stickers, main PC board, signal board, moisture sensor, Cabled LED indicator, 2 x connection cables
* Fantasea FA6500 Housings labeled with a serial number within the range of 187402 – 187617 and All Fantasea FA6000 Housings require installing the Fantasea M16 Coarse to Fine Thread Insert Converter on the housing’s M16 port in order to accommodate the Hybrid Vacuum Safety System M16C. Please contact Fantasea Line or an authorized Fantasea dealer to order this converter.
Vidéo de démonstration: https://youtu.be/C1NgLNzyxPc
