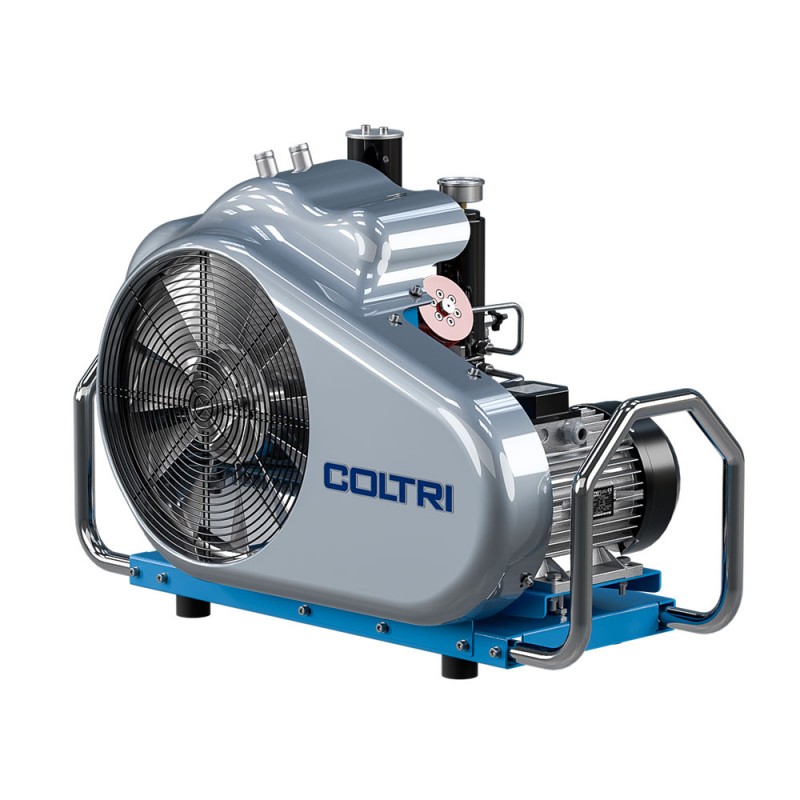

Breathing air compressor COLTRI SMART 125 EM - 7.5 m3/h - 240 V single-phase.

High pressure breathing air compressor COLTRI SMART 125 EM - 7.5 m3/h - 240 V single-phase.

COLTRI SMART breathing air compressors represent the evolution of the Standard, one of the best known and best-selling models in the world

3-stage high pressure pumping unit.

• Monobloc in aluminum,
• Gooseneck in forged steel
• Splash lubrication
• Forged aluminum connecting rods
• Main roller bearings
• Roller connecting rod bearings
• 1st and 2nd stage cylinders in aluminum with hard nicasil coating
• 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating
• 3rd stage cylinder in special treated steel.
• Stainless steel intake and exhaust valves
• Interstage cooling pipes in stainless steel
• Separator after the 2nd and 3rd stage
• Safety valves after each stage
• Maxifilter filter system

The purity of the air is achieved.

The Maxifilter purification system enables reliable treatment of the breathing air according to DIN EN 12021¹ when using original filter cartridges. Placed after the last compressor separator and before the pressure maintenance valve, it has the separator after the 2nd and 3rd stage to create a first, fundamental barrier against humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 620m³

Frame

Essential and compact, this frame is designed to facilitate portability. The tilting motor-holder plate guarantees the constant tension of the V-belt. The protective casing in thermo-formed material conveys the cooling air on the cylinders and on the inter-stage pipes. This guarantees a high compression efficiency

The highest air quality is the goal of a Coltri compressor.

Air purity and quality are two essential characteristics of our compressors. The air you breathe from Coltri compressors complies with the EN 12021: 2014 standards: this is why you can work, have fun and exercise with them in absolute safety.

Equipment :

• Frame color Blue RAL 5015.
• manual drain valves
• Oil and water separators on 2nd and 3rd stage
• Safety valves on 1st, 2nd, 3rd stage
• Maxifilter breathing air filtration according to EN 12021:2014 standard
• 2 Cylinder connections to choose from DIN 232, DIN 300 or INT / YOKE 232 bar
• Carrying handles

technical data of the pumping unit:

• Flow rate: 7.5 m3/h - 125 L/min
• Number of laps of the pumping unit: 1500 tr/min
• Electric engine: 3 Kw 230-240V / 50 Hz single-phase / 18 A
• Working pressure: 232, 300, 330, 420 bar ( choose when you place the order)
• Filling time for a 10l cylinder from 0 to 200 bar : 16 minutes
• Noisiness: 92 Db
• Weight: 93 Kg
• Dimensions: 100 cm L x 46 cm W x 70 cm H
