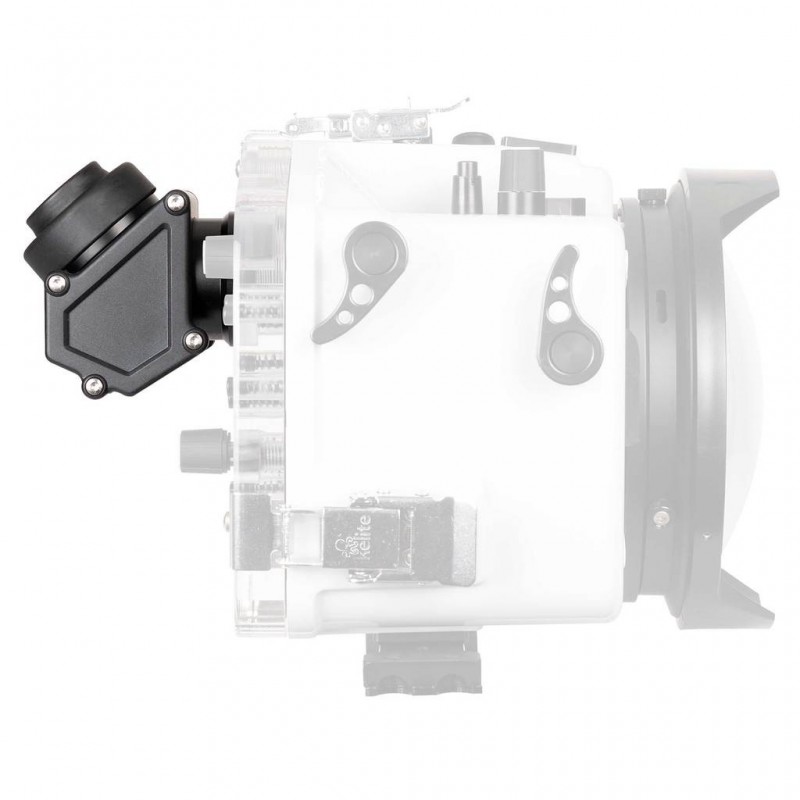

45° Type 4 viewfinder for DSLR and mirrorless housings

45° magnifying viewfinder for DSLR and mirrorless housings

This 45° viewfinder is designed to extend away from the housing without changing the size of the viewfinder image.

Enjoy a brighter image with the ability to easily see angles compared to the standard viewfinder.

With the 45° viewfinder, experience a different shooting experience. Since the photographer is in a prone position for most of the dive, the 45° viewfinder helps reduce arm fatigue and makes framing easier when the subject is slightly below the photographer or in a cavity.

The 45° viewfinder can be rotated in any direction, making it easy to switch from landscape to portrait mode.

The included tool allows for easy removal of the original viewfinder and quick installation of the magnifying viewfinder. For travel, it is recommended to remove the viewfinder. No modification to the housing is required, and the standard viewfinder can be reinstalled later.

Compatibility with Housings:

Two versions of the 45° viewfinder are available to ensure the best fit for each housing.

Please refer to this link for a list of compatible housings with 45° type 1, type 2, type 3, or type 4 viewfinders: https://docs.ikelite.com/reference/viewfinder-chart.pdf

Included in the package:

• Viewfinder
• Lens protector
• Removal and installation tool
• 1 set of spare o-rings

Technical Specifications:

• Weight: 331 grams
• Dimensions: 57 x 82 x 97mm
• Magnification factor compared to the housing's standard viewfinder: x1.0
• Materials: anodized aluminum, glass, and Delrin

- This viewfinder is specifically designed for use with Ikelite housings.
